International double-front up & down pole vault landing system
17,990.00€
* VAT not included
** EXW Vienna
- Product Code: OPSDM1010
- Availability: Production time 6-8 weeks
Available Options

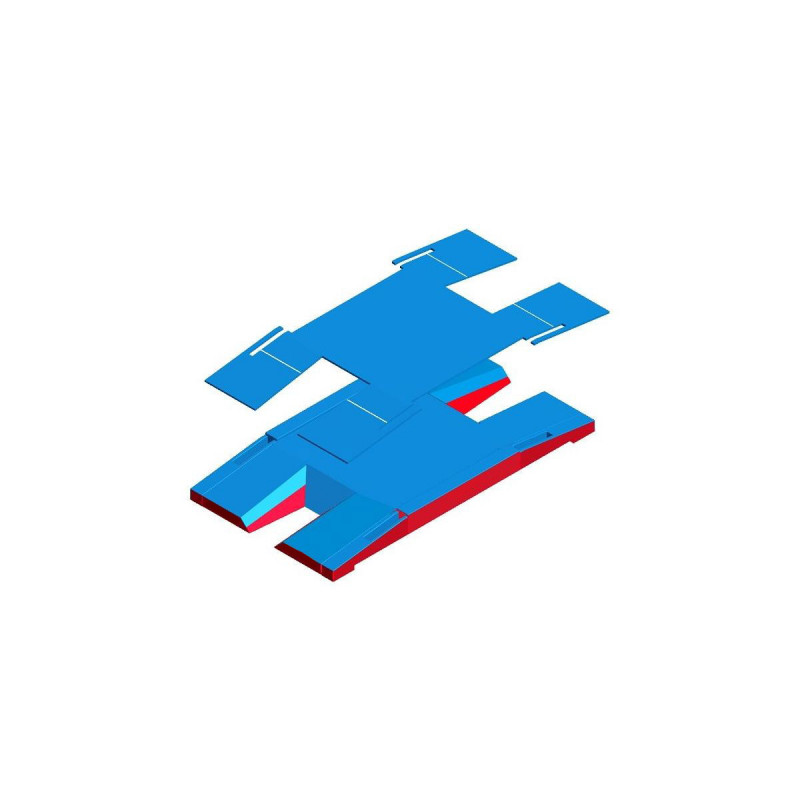

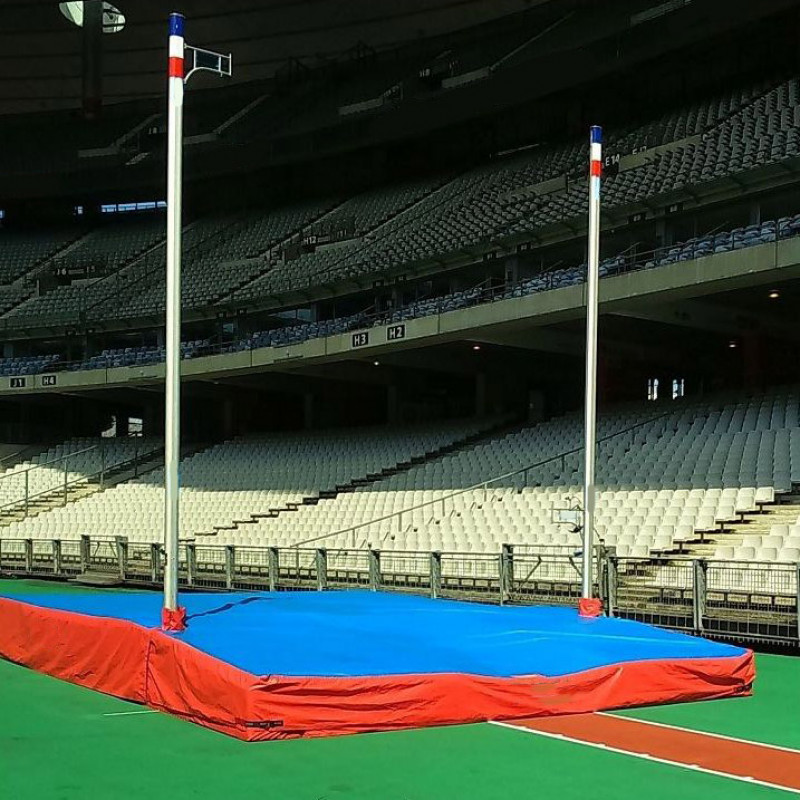

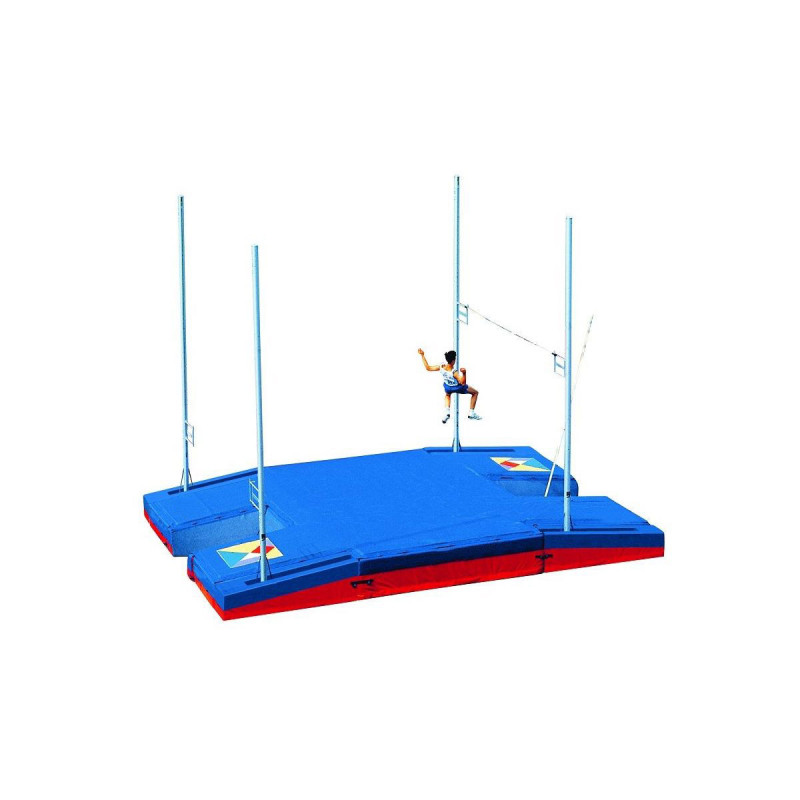

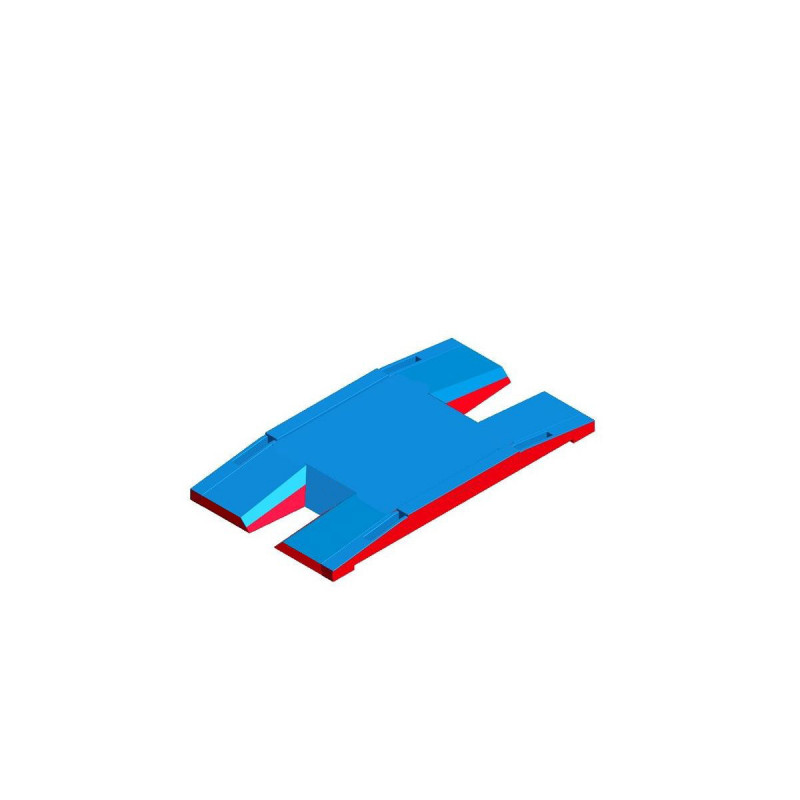

The International double-front Up&Down single cover landing system allows to always jump in the best wind conditions thanks to its double-front extensions, for the complete satisfaction of the athletes and the organizers.
Very comfortable major competition landing system. The uprights rolling bases are totaly safe since they are fully integrated within the landing system.
The foam units at the side can be raised without displacing them (since they are joined to the landing system) so that the uprights rolling bases can be slid round easily if the direction of the wind should change. There is no need for dismantling.
I.A.A.F. level 2 specifications.
NF EN 12503-2 type 11 certified.
Technical Details
Dimensions | • Modular: 11.00 X 6.00 X 0.87 / 0.47 m (each block has its own cover) |
Colour | Red, blue |
Production time | 6-8 weeks |
Price | Per unit |
Advantages
The central sections rest on a galvanized platform.
Double font extensions 200 cm.
Blocks, mats connected by belts.
Metric marking to adjust the position of uprights.
The block filler is made of polyurethane foam with a density of 24 kg / m³.
Distance between vault boxes: 7.00 m.
The upper mat is 7 cm thick with a cover made of material that protects from studded shoes.
Optional

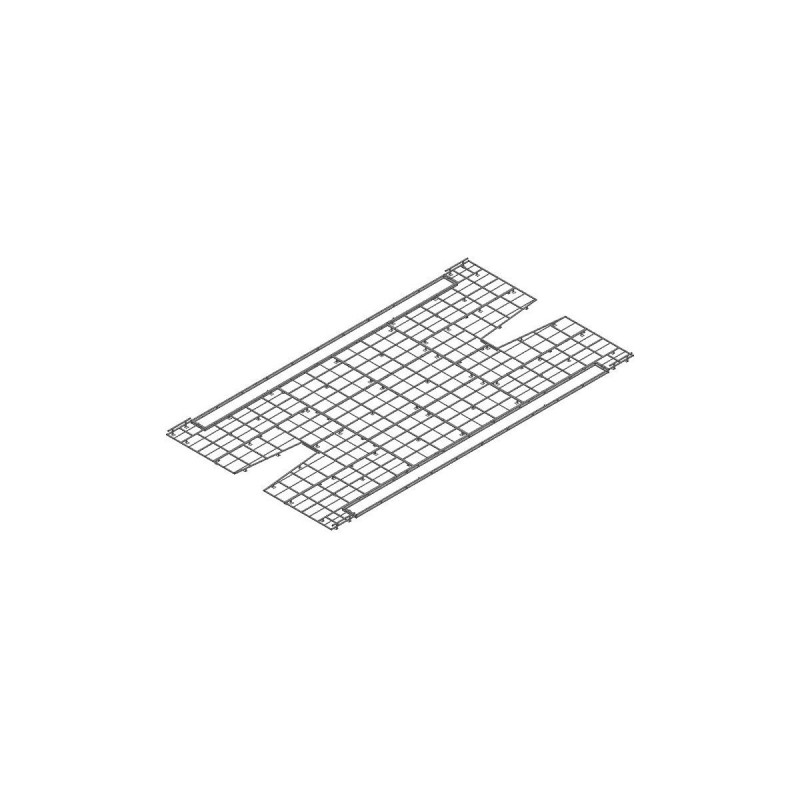

• Galvanized platform for up&down pole vault landing system 11.00 x 6.00 x 0.10m
Galvanized metallic platform elevated 10cm on wide feet, equipped with side bars to maintain mattress blocks. Supplied in separate elements with fixing jaws.
Each end is secured by a plastic cap.
A flat metallic sheet secures the pole vault box area preventing the poles from sliding underneath the platform and breaking.

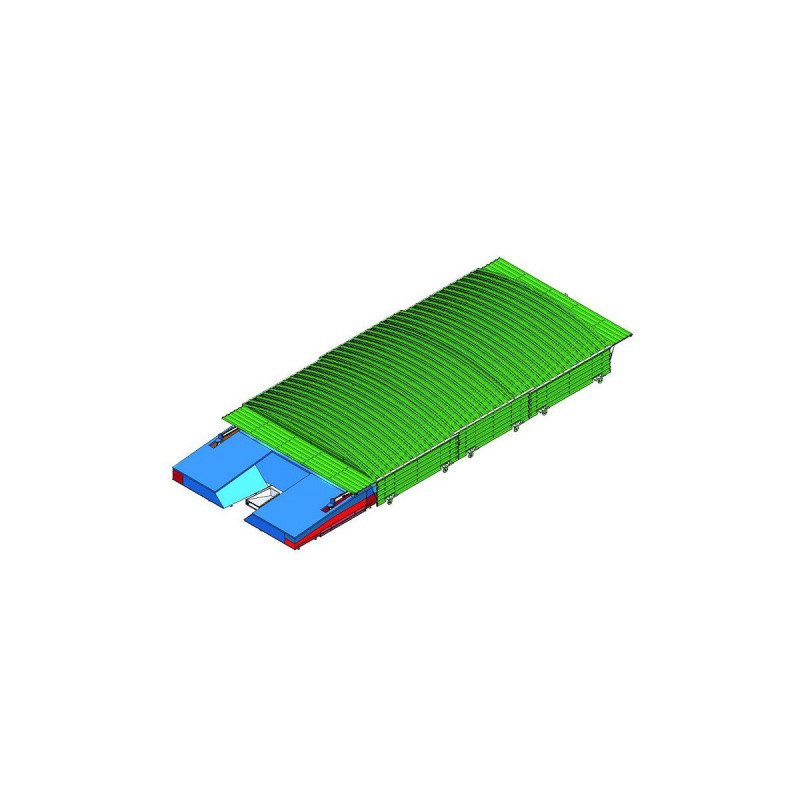

• Integral shed on fixed wheels for international double-front up&down pole-vault landing system 11.60 x 6.70m
For a 11.00 x 6.00 m double-front pole-vault landing system.
The integral shed for doube front up & down pole vault landing system allows all of your equipment (landing system and foldable pole-vault standards) to be totally protected against bad weather and vandalism and to guarantee its durability.
Our rounded and appropriately coloured sheds blend into the background. It can be pushed to one side or the other independently thanks to its 2 doors.
The doors of our pole-vault sheds are jack-operated for easier handling, a lower ground clearance and optimum security.
• Weather cover for up&down pole vault landing system 11.00x6.00x0.87/0.47m
