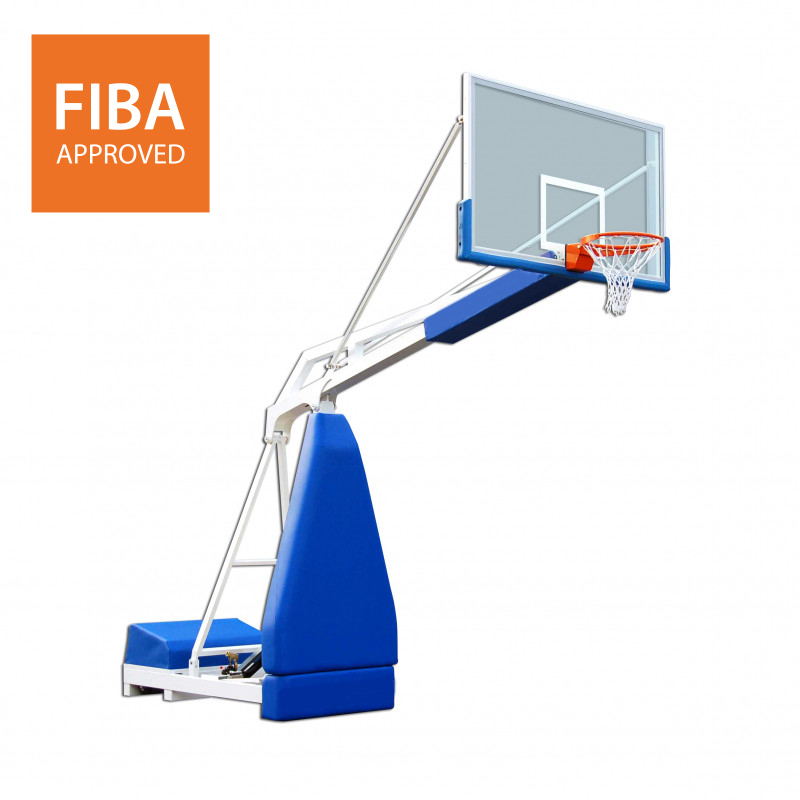

Hydroplay Club portable basketball backstops. Varnished steel structure with projection cm 225. Oleodynamic unit with electric pump allowing movent from rest to play position and viceversa. Telescopic bar applied over the cylinder usefull for easy finding and blocking heights corresponding to basket or minibasket standards. Mechanical solution able to keep backboards always perfectly perpendicular at any height. Movement of backstop on the floor obtained by using 4 rubber wheels integrated on the base, automatically raising or lowering accordingly to movement to play or rest positions. Padded counterweight inclulded on the back of the base. Front padding covered with synthetic washable material. Pads covering for 100 cm the main projection arm. Equipped with 12 mm safety tempered glass backboards with pads, reclining rings and nets.
Technical Details
Projection (cm) | 225 |
Fixed / Portable | Portable |
Foldable | Yes |
FIBA Level | FIBA 2nd level |
Indoor / outdoor | Indoor |
Hight adjustment | Yes |
Electric pump / manual pump | Electric pump |
Dimensions folded | 370x190x190h |
Dimensions installed | 490x190x395h |
Weight | approx 750 kg per unit |
Transport dimensions | 4 ldmt/ 1 pair |
Production time | 6-8 weeks |
Price | per unit |
ADVANTAGES
Cheapest solution FIBA level 2 - electric pump - very easy to settle - compact
